ASME B16.9 Stainless Steel Pipe Fitting Reducing Tee Pipe Fittings Tee
Tee is also called pipe tee or tee pipe, tee joint, etc. Mainly used to change the direction of the fluid, used at the branch pipe of the main pipeline. Can be classified according to pipe diameter. Generally made of carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon leaching, pvc and other materials.
Divided by pipe diameter
The ends of the equal diameter three links are all the same size;
The connecting size of the main pipe of the reducing tee is the same, while the connecting size of the branch pipe is smaller than that of the main pipe.
Divided by material
Carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon leaching, pvc, etc.
Divided by production method
Topping, pressing, forging, casting, etc.
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER | CENTER TO END | LENGTH |
| Inch. | OD | C | M |
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1 1/4 | 42.2 | 48 | 48 |
| 1 1/2 | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2 1/2 | 73 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 3 1/2 | 101.6 | 95 | 95 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273.1 | 216 | 216 |
| 12 | 323.9 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
| 16 | 406.4 | 305 | 305 |
| 18 | 457.2 | 343 | 343 |
| 20 | 508 | 381 | 381 |
| 22 | 559 | 419 | 419 |
| 24 | 610 | 432 | 432 |
| 26 | 660 | 495 | 495 |
| 28 | 711 | 521 | 521 |
| 30 | 762 | 559 | 559 |
| 32 | 813 | 597 | 597 |
| 34 | 864 | 635 | 635 |
| 36 | 914 | 673 | 673 |
| 38 | 965 | 711 | 711 |
| 40 | 1016 | 749 | 749 |
| 42 | 1067 | 762 | 711 |
| 44 | 1118 | 813 | 762 |
| 46 | 1168 | 851 | 800 |
| 48 | 1219 | 889 | 838 |
Product Tags:
|
|

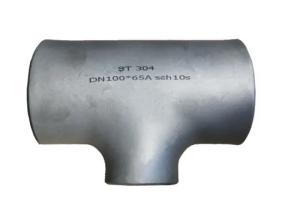

Welded 72'' ASME B16.9 Stainless Steel Pipe Fittings Tees Images
|
